Regular price $ 345

 Black stainless M3 mounting screws & washers are included



Quick Specs

  • GAIN Range: -1 to 1
  • Channel GAIN Error (typ): 0.02%
  • OFFSET Range: -5 to +5VDC
  • Max SLUR time: 23s (90%)
  • XF CV Input Range: +/-2.5V (5Vpp) or +/-5V (10Vpp)
  • Input Impedance: 50kOhms
  • Power Requirements: +/-12V @ 70mA
  • Size: 14HP W x 128.5mm H x 55mm D





Available at:

UK:

EU:

US:

Overview

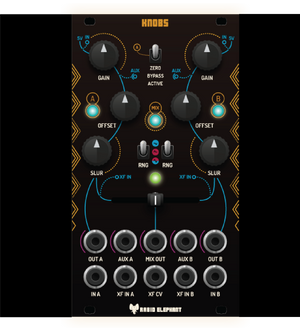

Knobs is a highly playable, precision voltage processing utility.  Two channels of configurable gain, offset, and slur feed a low-noise CV crossfader.  This layout takes useful utility functions and makes them very playable and interactive.

Features

  • Two voltage processing channels
  • Precision attenuversion with range switch for positive, negative, and bipolar gain adjustment.  Control extents provide gains of exactly 0 or +/-1
  • +/- 5V offset adjustment with trimmed 5V precision reference
  • Slur adjustment up to 23 seconds
  • Low noise CV linear crossfader normalled to voltage processing channels
  • 'Smooth detent' fader with precise settability of center position
  • Active switch for bypassing, zeroing, or applying processing
  • RGB voltage indications of signal polarity, amplitude, and zero value
  • Long life switches & potentiometers
  • Low loss, high speed active reverse voltage protection
  • Overcurrent protection
  • Low loss, long life, high rel power cable with keyed & latching connector
  • Extremely high build quality and reliability (click here for details)
